Diagnostic Engine

Most tools wait for you
to type in the code.
This one goes and gets it.

Plug in an OBD-II adapter and Lane Pilot works the vehicle itself — deciding what to read next, chasing the modules that answer slow, and telling you straight what it couldn't reach. Then five specialist agents reason over what it actually found and hand back a ranked plan with the one test worth running next.

5 Agentsparallel reasoning
·
All Makes1996–present
·
< 90sdeep analysis
·
Next testranked for every job
Know what you’re chasing.45-second tour

Illustrative workshop photo. Recreated app screens with sample data, one actual saved scan, and synthetic narration.

Technician at diagnostic workstation
Multi-Agent Architecture

Five agents. One diagnosis.

Every query triggers a parallel pipeline — not a single API call to a generic model.

Input
DTC + Symptoms
Dispatcher
Agent #1
parallel
Librarian
Agent #2
parallel
NHTSA
Agent #3
parallel
Shop Data
Feedback Loop
Mechanic
Agent #4
Foreman
Agent #5

Hover over an agent to see what it does

Guided Walkthrough

See the Engine in action

An animated walkthrough of how a U0100 CAN-Bus fault gets triaged, analyzed and resolved. The steps mirror a real session; the playback is compressed so you can watch it in one go.

2022 Range Rover L460 · U0100 · Walkthrough
WALKTHROUGH

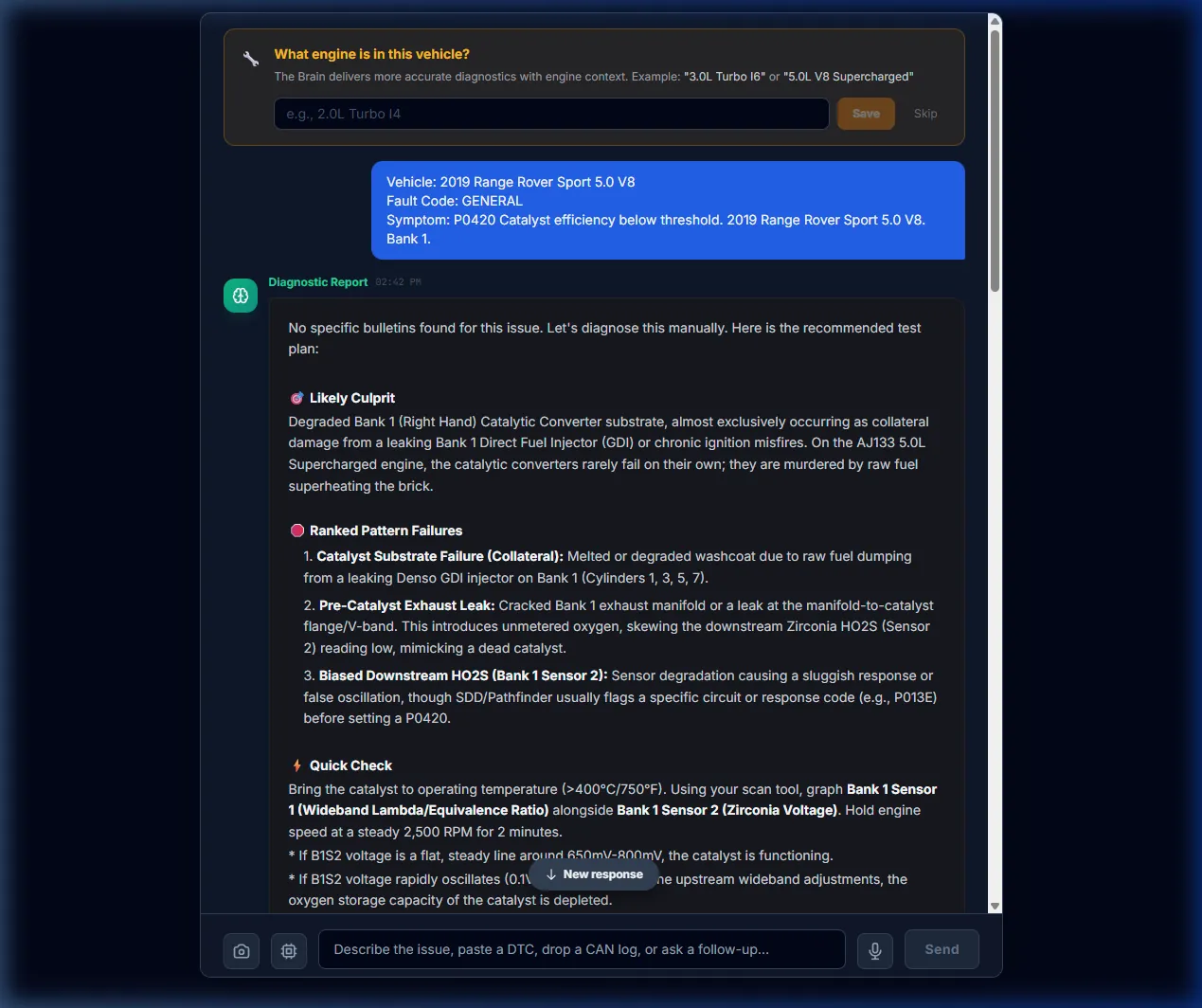

🎯 Likely Culprit + ⚡ Quick Check + 📊 Targets — ranked diagnostic results

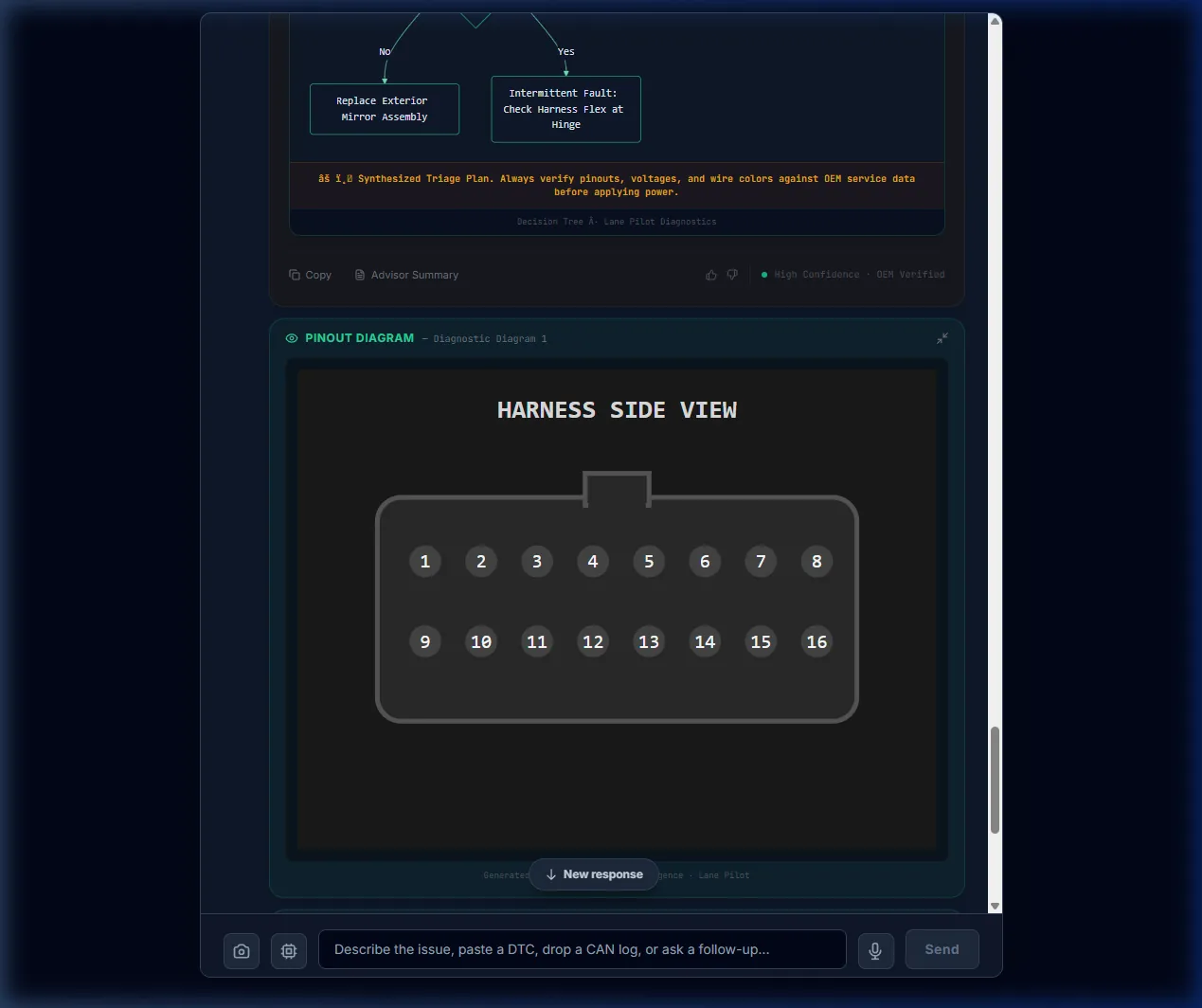

🔍 Connector Face View — HARNESS SIDE VIEW with 16-pin grid layout and keyway

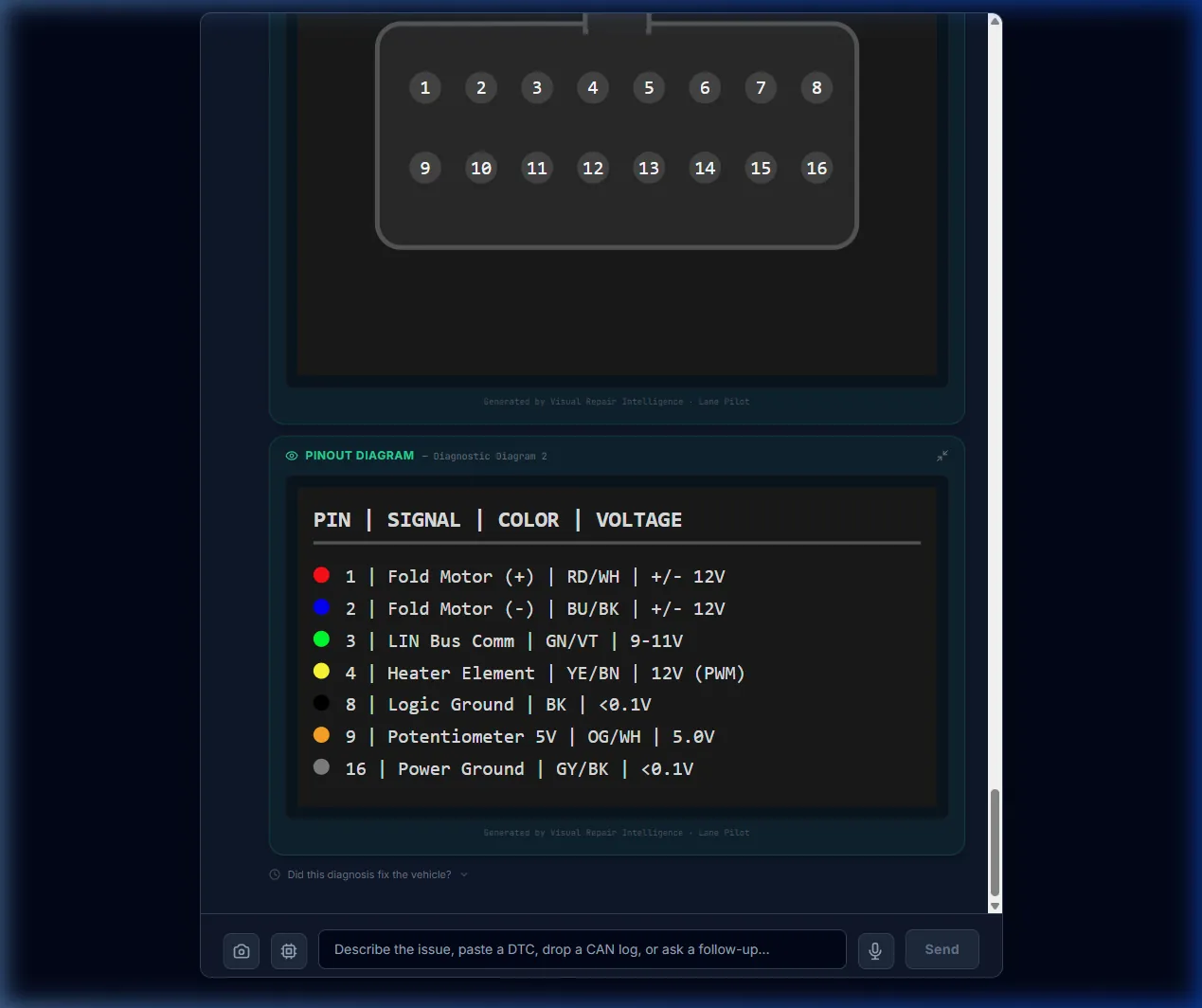

📋 Pin Legend — signal names, wire colors, and voltage specs for every pin
🎯 Pattern Failure Analysis🔍 Connector Pinout Views📊 Wire-Level Accuracy
Decision Trees

See the diagnostic path. Not just the answer.

Every diagnosis generates an interactive flowchart — pinch-to-zoom on mobile, drag-to-pan, expand fullscreen, and export as PNG for the repair order.

U0100 — CAN-Bus Diagnostic Path
Fullscreen↓ Export PNG
U0100 — Lost Communication with ECM/PCM
Measure CAN Bus termination at DLC
120Ω ±5%
Check CAN-H / CAN-L voltage at ECM
Verify ECM B+ and ground
Open / ∞Ω
Locate open CAN line
Inspect B-pillar harness conduit
< 60Ω
Short CAN-H to CAN-L
Isolate modules 1-by-1
Generated from: scan data + NHTSA records
Interactive · Zoomable · Exportable
CAN Bus Topology

See what’s on the bus. In seconds.

One tap rolls call across the CAN network and renders what answers — online, offline, or throwing errors — plus the modules a secure gateway kept it out of. You’ll know before you touch a wire.

CAN Network — Module Roll Call
⛶ Fullscreen↺ Re-Scan
GWMGatewayECMonlineTCMonlineABSonlineBCMonlineSASonlineIPConlinePSCMonlineSRSofflineTCCMU0100
10 modules scanned7 online2 offline1 error
Live Demo

Not a search engine. A specialist.

Every diagnosis shows the evidence it used and the test to run next.

It Runs the Scan Itself
Not a form you fill in. Lane Pilot decides what to read next — unions the capability masks when one module under-reports, escalates to a deeper mode when the first pass comes back thin, and moves on from an ECU that's stalling. Then it tells you which modules never answered.
Next-Best-Test Engine
Active test sequencing. Ranks every open hypothesis and names the physical test that eliminates the most causes per minute of labor. Post the result — the whole list re-ranks.
Waveform Intelligence
Drop a scope capture into the chat — CSV export or a straight screenshot. The engine classifies the signal and folds the evidence into the hypothesis ranking, same turn.
Diagnostic Decision Trees
Every diagnosis generates an interactive flowchart. Pinch-to-zoom on mobile, drag-to-pan, expand fullscreen, and export as PNG for the repair order.
CAN Network Topology
One-tap module roll call. Renders a live spiderweb of what answers on the bus — online, offline, or error — in seconds, and flags what a secure gateway kept it out of. Dead buses and ghost modules called out. No menu diving.
Recall & Repair Evidence
Draws on NHTSA recalls and complaint records, confirmed repair outcomes from other shops, and the scan itself. All makes supported — domestic, Asian, and European.
Web Bluetooth Scanner
Connect a Bluetooth LE ELM327-compatible adapter through the browser (USB and Bluetooth Classic adapters work from a computer). Stream live PIDs, run a Deep Scan, and hand it all to the Diagnostic Engine.
Visual Repair Intelligence
Upload a photo. Get bounding boxes on the components that matter to the diagnosis — severity graded red, yellow, green. Tap a box for the part name and its grade.
PDF Report Export
One-tap branded diagnostic reports with vehicle info, DTCs, analysis steps, and parts tables. Works completely offline. Attach to any repair order.

See it in action.

Try it free for 30 days: 50 diagnostic sessions for your whole shop, no credit card. Connect an OBD-II adapter or import a report from the scan tool you already own.

Start Free Trial
